Timing Belt ATLATOS®

Overview ATLATOS® Data Sheets

ATLATOS® Data Sheets

Atlatos Linear – Types with HDT-Profile

wdt_ID Type Material Cord Pitch Production width Standard Cutting Lines Data Sheet
1 HTD 5M Steel PU 92° Shore A Steel 5 mm 150 mm 15 x 10 | 10 x 15 | 6 x 25
2 HTD 8M Steel PU 92° Shore A Steel 8 mm 150 mm 15 x 10 | 5 x 30 | 3 x 50 | 1 x 150
3 HTD 14M Steel PU 92° Shore A Steel 14 mm 115 mm 2 x 55 (+5) | 1 x 85 (+2 x 15)

All belts are available with Polyamid Fabric on Tooth- and Backside. Antistatic versions are as well possible as Special Colors or cords. Please send us your inquiry.

Atlatos Linear – Types with AT-Profile

wdt_ID Type Material Cord Pitch Production width Standard Cutting Lines Data Sheet
1 AT5 Steel PU 92° Shore A Steel 5 mm 150 mm 15 x 10 | 9 x 16 | 6 x 25 | 4 x 32 | 3 x 50
2 ATL5 Steel PU 92° Shore A Steel 5 mm 150 mm 15 x 10 | 9 x 16 | 6 x 25 | 4 x 32 | 3 x 50
3 AT10 Steel PU 92° Shore A Steel 10 mm 150 mm 15 x 10 | 9 x 16 | 6 x 25 | 4 x 32 | 3 x 50
4 ATL10 Steel PU 92° Shore A Steel 10 mm 150 mm 15 x 10 | 9 x 16 | 6 x 25 | 4 x 32 | 3 x 50
5 ATK10 (K13) Steel PU 92° Shore A Steel 10 mm 50/100 mm 1 x 32 | 1 x 50 | 1 x 75 | 1 x 100
6 ATLK10 (K13) Steel PU 92° Shore A Steel 10 mm 50/100 mm 1 x 32 | 1 x 50 | 1 x 75 | 1 x 100
7 AT20 Steel PU 92° Shore A Steel 20 mm 150 mm 15 x 10 | 9 x 16 | 6 x 25 | 4 x 32 | 3 x 50

All belts are available with Polyamid Fabric on Tooth- and Backside. Antistatic versions are as well possible as Special Colors or cords. Please send us your inquiry.

Atlatos Linear – Types with T-Profile

wdt_ID Type Material Cord Pitch Production width Standard Cutting Lines Data Sheet
1 T5 Steel PU 92° Shore A Steel 5mm 150mm 15 x 10 | 9 x 16 | 6 x 25 | 4 x 32 | 3 x 50
2 T10 Steel PU 92° Shore A Steel 10 mm 150 mm 15 x 10 | 9 x 16 | 6 x 25 | 4 x 32 | 3 x 50
3 TL10 Steel PU 92° Shore A Steel 10 mm 150 mm 15 x 10 | 9 x 16 | 6 x 25 | 4 x 32 | 3 x 50
4 TK10 Steel (K13) PU 92° Shore A Steel 10mm 50 /100 mm 1 x 32 | 1 x 50 | 1 x 75 | 1 x 100
5 T20 Steel PU 92° Shore A Steel 20 mm 150 mm 15 x 10 | 9 x 16 | 6 x 25 | 4 x 32 | 3 x 50
6 TL20 Steel PU 92° Shore A Steel 20 mm 150 mm 15 x 10 | 9 x 16 | 6 x 25 | 4 x 32 | 3 x 50
7 L Steel PU 92° Shore A Steel 9,53 mm 152,4 mm 12 x 12,7 | 6 x 25,4
8 H Steel PU 92° Shore A Steel 12,7 mm 101,6 mm 8 x 12,7 | 5 x 19,1 |4 x 25,4
9 XH Steel PU 92° Shore A Steel 22,23 mm 152,4 mm 6 x 25,4 | 4 x 38,1

All belts are available with Polyamid Fabric on Tooth- and Backside. Antistatic versions are as well possible as Special Colors or cords. Please send us your inquiry.

Atlatos Flex – Teilungen mit T-Profil

wdt_ID Type Material Zugträger Teilung Produktionsbreite Längen
1 XL Stahl TPU 88° Shore A Stahl 5,08 mm 150 mm
2 L Stahl TPU 88° Shore A Stahl 9,525 mm 150 mm
3 H Stahl TPU 88° Shore A Stahl 12,7 mm 150 mm
4 HTD 3M Stahl TPU 88° Shore A Stahl 3 mm 150 mm
5 HTD 5M Stahl TPU 88° Shore A Stahl 5 mm 150 mm
6 T2,5 Stahl TPU 88° Shore A Stahl 2,5 mm 150 mm
7 T5 Stahl TPU 88° Shore A Stahl 5 mm 150 mm
8 DT5 Stahl TPU 88° Shore A Stahl 5 mm 150 mm
9 AT5 Stahl TPU 88° Shore A Stahl 5 mm 150 mm
10 T10 Stahl TPU 88° Shore A Stahl 10 mm 150 mm

Atlatos Flex – Types with T-Profile

wdt_ID Type Material Cord Pitch Production width Data Sheet
1 T10 Steel Flex PU 92° Shore A Steel 10 mm 150 mm
2 T10 Steel Flex INOX PU 92° Shore A Stainless Steel 10 mm 150 mm
3 TL10 Steel Flex PU 92° Shore A Steel 10 mm 150 mm
4 TL10 Steel Flex INOX PU 92° Shore A Stainless Steel 10 mm 150 mm
5 T20 Steel Flex PU 92° Shore A Steel 20 mm 150 mm
6 T20 Steel Flex INOX PU 92° Shore A Stainless Steel 20 mm 150 mm
7 TL20 Steel Flex PU 92° Shore A Steel 20 mm 150 mm
8 TL20 Steel Flex INOX PU 92° Shore A Stainless Steel 20 mm 150 mm

All belts are available with Polyamid Fabric on Tooth- and Backside. Antistatic versions are as well possible as Special Colors or cords. Please send us your inquiry.

Atlatos Flex – Types with AT-Profile

wdt_ID Type Material Cord Pitch Production width Data Sheet
1 AT10 Steel Flex PU 92° Shore A Steel 10 mm 150 mm
2 AT10 Steel Flex INOX PU 92° Shore A Stainless Steel 10 mm 150 mm
3 ATL10 Steel Flex PU 92° Shore A Steel 10 mm 150 mm
4 ATL10 Steel Flex INOX PU 92° Shore A Stainless Steel 10 mm 150 mm
5 AT20 Steel Flex PU 92° Shore A Steel 20 mm 150 mm
6 AT20 Steel Flex INOX PU 92° Shore A Stainless Steel 20 mm 150 mm

All belts are available with Polyamid Fabric on Tooth- and Backside. Antistatic versions are as well possible as Special Colors or cords. Please send us your inquiry.

Atlatos Linear – Types with HDT-Profile

wdt_ID Type Material Cord Pitch Production width Data Sheet
1 HTD 14M Steel Flex PU 92° Shore A Steel 14 mm 150 + 175 mm
2 HTD 14M Steel Flex INOX PU 92° Shore A Stainless Steel 14 mm 150 + 175 mm

All belts are available with Polyamid Fabric on Tooth- and Backside. Antistatic versions are as well possible as Special Colors or cords. Please send us your inquiry.

Atlatos Drive

wdt_ID Type Material Cord Pitch Production width length
1 XL Steel TPU 88° Shore A Steel 5,08 mm 150 mm
2 L Steel TPU 88° Shore A Steel 9,525 mm 150 mm

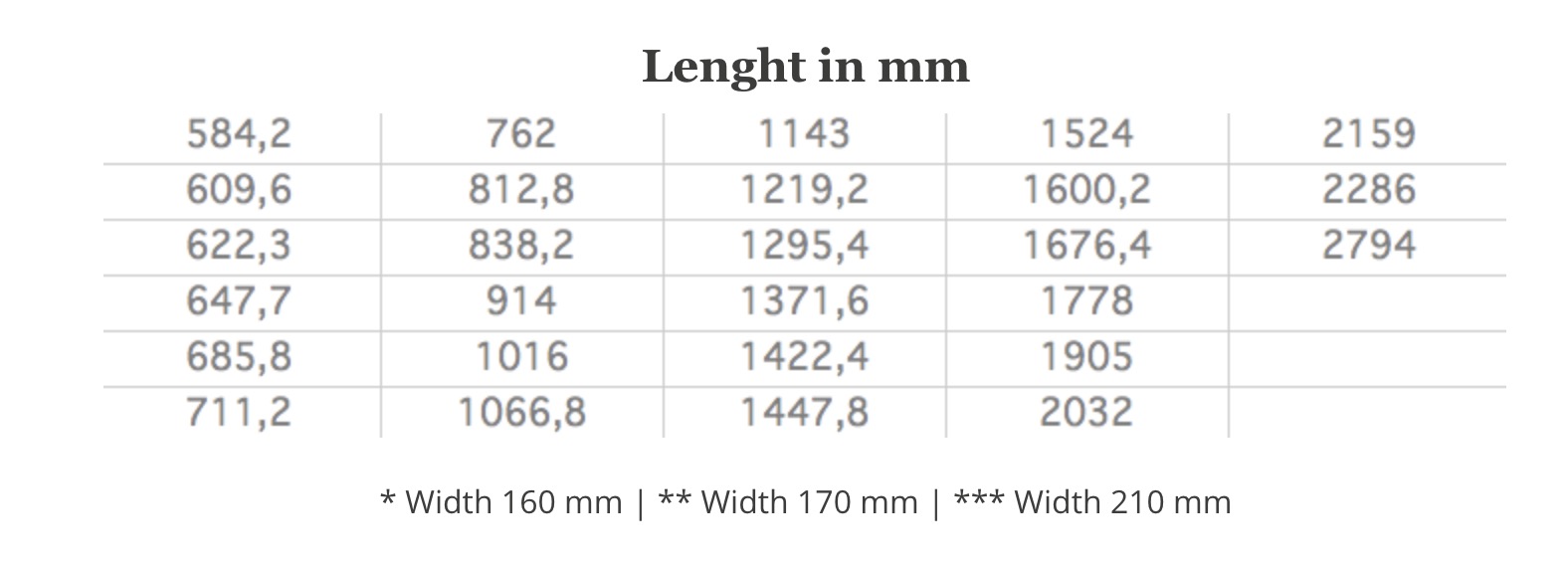

3 H Steel TPU 88° Shore A Steel 12,7 mm 150 mm
4 HTD 3M Steel TPU 88° Shore A Steel 3 mm 150 mm
5 HTD 5M Steel TPU 88° Shore A Steel 5 mm 150 mm
6 T2,5 Steel TPU 88° Shore A Steel 2,5 mm 150 mm
7 T5 Steel TPU 88° Shore A Stahl 5 mm 150 mm
8 DT5 Steel TPU 88° Shore A Steel 5 mm 150 mm

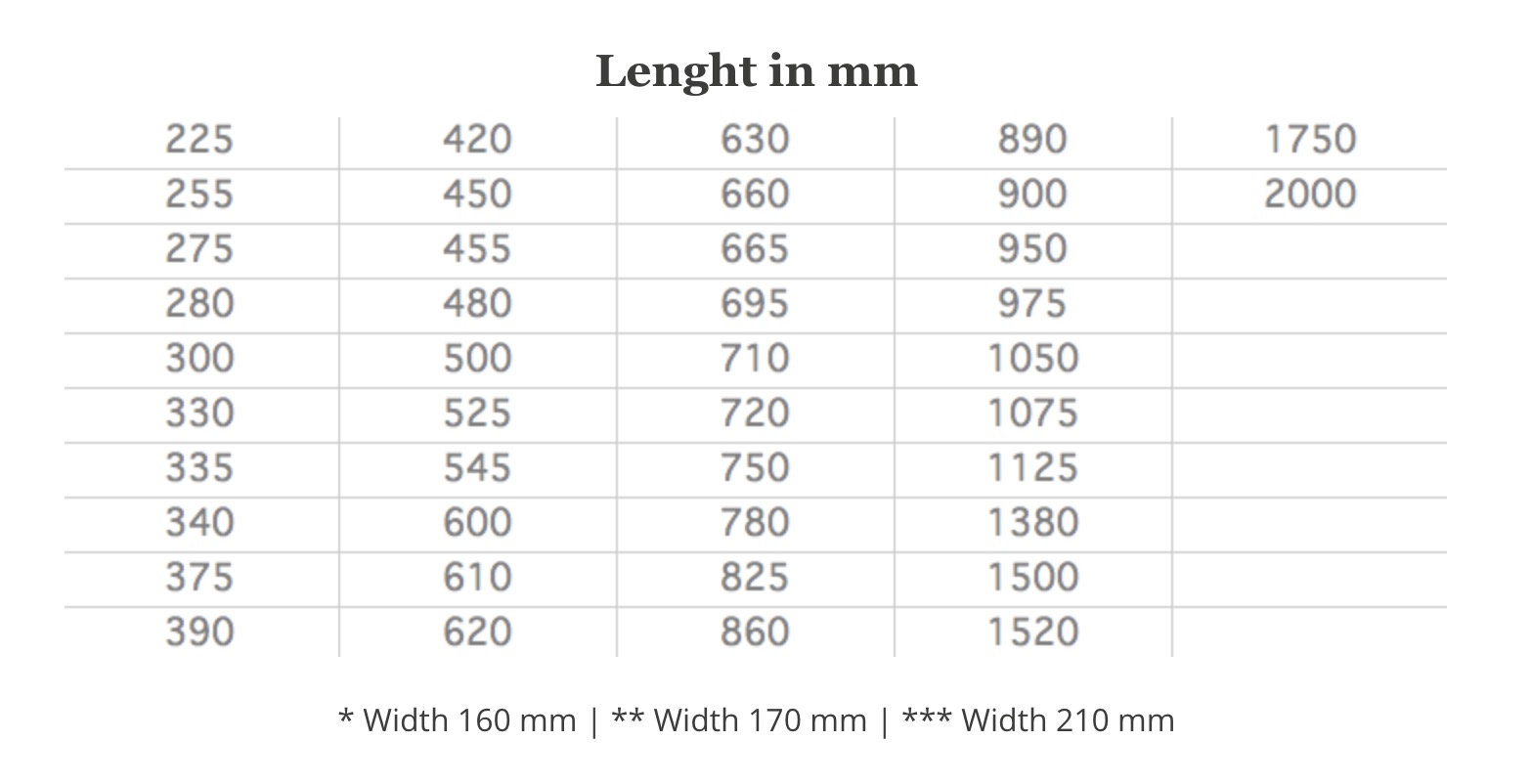

9 AT5 Steel TPU 88° Shore A Steel 5 mm 150 mm
10 T10 Steel TPU 88° Shore A Steel 10 mm 150 mm
